Home Products Hydraulic Pumps Pump (Open-loop) Type F30D Fixed displacement axial piston pump

Please configure the following parameters

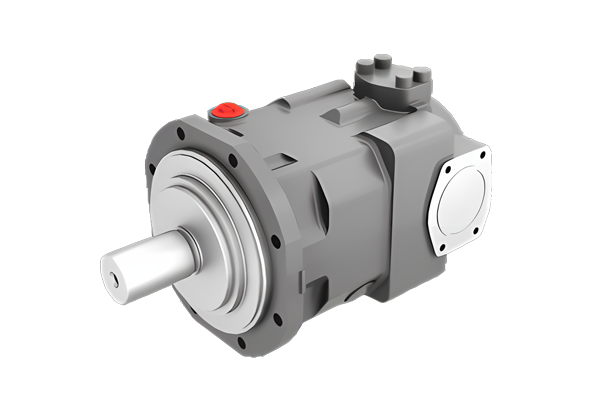

Type F30D Fixed displacement axial piston pump

Series of pictures

The axial piston fixed displacement pumps of the type F30 of D offer extremely high function safety. Its remarkably low noise levels, the high pressure rating, optimined power-to-weight-ratio make it possible to employ it for most industrial.

Nominal pressure pnom : 420 bar

Peak pressure pmax : 450 bar

Displacement Vmax : 280-520 cm³/rev

Configuration model/order number

****

Copy to the clipboard

ADD TO CART Catalog download Obtain 3D/2D drawings Export the configured parameters

Open all | Close all

Series advantages

・Low-noise emissions

・Full torque available at the second pump in tandem pump applications

Technical specifications

	Displacement (cm³/rev.)	Rated pressure (bar)	Minimum oil suction pressure (bar）	Shell pressure (bar)	Self suction speed (rpm )	Minimum speed (rpm)	Temperature range (℃ )	Weight (kg)
F30D - 280	280	420	0.85	2 \| instantaneous 3	1800	500	-25~100	131
F30D - 520	520	420	0.85	1 \| instantaneous 2	1500	500	-25~100	252

Application industry

Downloads

Catalog
